120-150m3/H Bucket Chain Dredger
, Diamond Bucket Chain Dredger
, Gold Bucket Chain Dredger

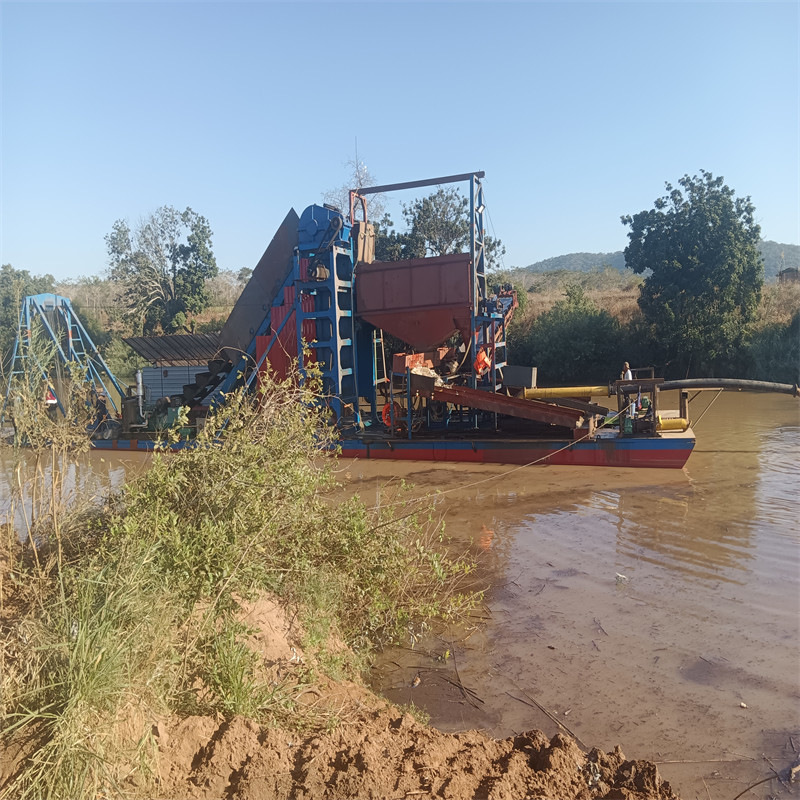

Gold and Diamond Bucket Chain Dredger for sale
product description
Chain bucket dredger is a durable sand mining equipment, for some of the higher proportion
of stone content of the environment is very suitable, when the equipment is working, driven by
the motor, the upper corner wheel began to rotate, thereby driving the chain, bucket rotation,
when the bucket through the bottom, direct contact with the sand, the sand dug up, through the
chain drive, The digging bucket full of sand is transmitted out, and the new digging bucket is
repeated, so that the sand is extracted from the river by the bucket, and the sand water content
taken by the dredging ship is low, and can be directly transmitted to the transport ship, which
is very suitable for the river that is mined and sold.
product parameters
|
Model
|
YSBCD80
|
YSBCD100
|
|
Capacity(m3/h)
|
80-100
|
120-150
|
|
Dredging depth(m)
|
1-10
|
1-15
|
|
Main engine power(kw)
|
45
|
75
|
|
Main reducer
|
ZQ750
|
ZQ1250
|
|
Bucket
|
800mm
|
1000mm
|
|
Chain
|
600*90*22mm
|
650*90*25mm
|
|
Big Arm Winch
|
15kw-6
|
22kw-6
|
Working Principle
Excavation phase:
The bucket moves down the bucket frame to the bottom of the water, the bucket cuts into the
soil layer, and rises with the chain after being filled with mud and sand.
Lifting and transportation:
The bucket brings the material above the water surface and turns over at the top to unload.
Material handling:
The unloaded material is transferred to the shore or barge by a belt conveyor, or directly dumped
into a designated area.
application
Channel dredging: Maintaining the navigable depth of ports and canals.
Land reclamation: Providing fillers for coastal projects.
Mining operations: Mining underwater sand, gravel, ore and other resources.
Environmental dredging: Control of polluted sediment or reservoir siltation.
Why Choose a Chain Bucket Dredger?
Chain bucket dredgers are the preferred choice for projects requiring reliability, durability, and
efficiency. Whether you're mining valuable resources, maintaining waterways, or restoring
ecosystems, these dredgers deliver consistent performance in even the most challenging conditions.
Contact us today to learn more about how our chain bucket dredgers can meet your project needs!
