Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity

Name: Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd500
Price: 709000 USD
Availability: InStock

Produktdetails

Place of Origin: china

Markenname: yongsheng

Model Number: csd500

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 1

Preis: 709000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Erhalten Sie besten Preis

Produktdetails

Produkt-Beschreibung

Produktdetails

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                multifunction sand dredger with 760 cbm/h capacity, cutter suction dredger for sand, high capacity sand dredger with warranty


Customized:	customized	Condition:	new
Warranty:	1 year	Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H	Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m	Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly in Working Site	Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch	Total Power:	1648kw
Main Engine:	1193 Kw	Auxiliary Engine Power:	425kw
Generator:	30kw	Hydraulic Cutter Powerr:	220kw

Customized:	customized
Condition:	new
Warranty:	1 year
Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H
Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m
Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly in Working Site
Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch
Total Power:	1648kw
Main Engine:	1193 Kw
Auxiliary Engine Power:	425kw
Generator:	30kw
Hydraulic Cutter Powerr:	220kw

Produkt-Beschreibung

Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity

Product Specifications

Attribute	Value
Customized	Customized
Condition	New
Warranty	1 year
Water Flow	3800m³/H
Solid Capacity	760 Cbm/H
Max.Dredging Depth 45°	15m
Discharge Distance	1500m
Dredger After Assembly	478.82.5m (LengthWidthDepth)
Dredger Structure	Can Be Assembled at Working Site
Average Draught	1.6m
Diameter Discharge Pipe	500mm/20inch
Total Power	1648kw
Main Engine	1193 Kw
Auxiliary Engine Power	425kw
Generator	30kw
Hydraulic Cutter Power	220kw

Product Description

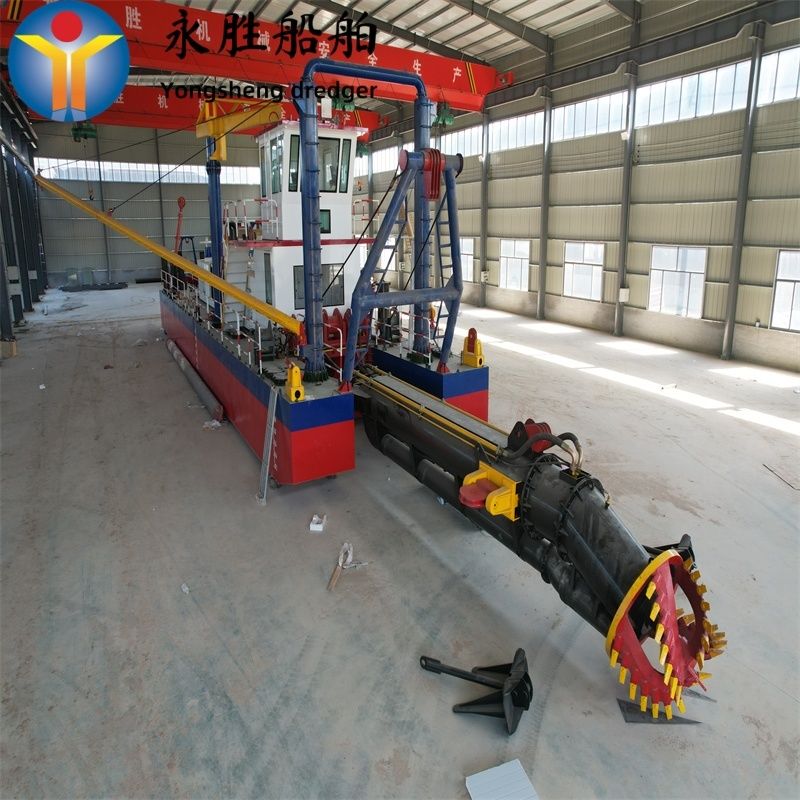

This multifunctional cutter suction dredger is designed for land filling, sand dredging, port deepening, channel dredging, and land reclamation projects. Engineered to CCS standards, it features a full welding steel structure with square hull and cross keel design.

Our diesel engine-driven dredgers are available in self-propelled or non self-propelled configurations with portable hydraulic cutter systems. The modular hull design allows for easy disassembly for shipping and reassembly at the worksite.

Available Models

Model	Inch	Diameter Pipe	Water Flow	Solid Capacity	Total Power	Dredging Depth	Discharge Distance
YSCSD150	6 Inch	150 mm	260 m³/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m³/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m³/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m³/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m³/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m³/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m³/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m³/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m³/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m³/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

Product Advantages

High sand extraction efficiency with continuous 20-hour operation capability
Large dredging depth range of 5-20 meters
Excellent environmental adaptability for various materials including sand, gravel, and loose soils
Flexible operation with easy hull positioning and adjustment capabilities
Centralized control console for convenient operation and real-time monitoring

After-Sales Service

We provide 12 months warranty and free service after successful commissioning and handover. Our experienced service team offers comprehensive support including training, operation guidance, and maintenance programs. Extended warranty and service periods are available upon negotiation.

Frequently Asked Questions

1. What is the clear water flow capacity per hour?

2. What is the maximum dredging depth?

3. What is the maximum discharge distance?

4. Is this dredger suitable for rivers, lakes, seas, or channels?
