Factory Price Sand Pumping Machine jet Sand Suction Dredger

Name: Factory Price Sand Pumping Machine jet Sand Suction Dredger
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: ys-10inch
Price: 70000 USD
Availability: InStock

Produktdetails

Place of Origin: china

Markenname: yongsheng

Model Number: ys-10inch

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 1

Preis: 70000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Erhalten Sie besten Preis

Produktdetails

Produkt-Beschreibung

Produktdetails

Hervorheben:

Customized:	customized	Condition:	new
Warranty:	1 year	Water Flow:	900m3/h
Solid Capacity:	150-180 Cbm/H	Max.Dredging Depth 45°:	10m
Discharge Distance:	800m	size:	17M5.0M1.2M
Main Engine:	294kw	consumption:	60L/H
Application:	sand suction	Work site:	river lake sea canal
Auxiliary engine power:	88kw	Core Components:	Engine, Pump

Customized:	customized
Condition:	new
Warranty:	1 year
Water Flow:	900m3/h
Solid Capacity:	150-180 Cbm/H
Max.Dredging Depth 45°:	10m
Discharge Distance:	800m
size:	17M5.0M1.2M
Main Engine:	294kw
consumption:	60L/H
Application:	sand suction
Work site:	river lake sea canal
Auxiliary engine power:	88kw
Core Components:	Engine, Pump

Produkt-Beschreibung

Factory Price Sand Pumping Machine jet Sand Suction Dredger

1.Brief Introduction
 Yongsheng jet suction dredgers are diesel engine driven (diesel/diesel-electric drives are optional).
This type dredger is widely applied for dredging projects located in reservoirs, artificial lakes, rivers, ports and
sand mining projects.

Our jet suction sand dredger is equipped with high pressure pump. It washes sand up , then the sand pump
conveys the sand to the destination through the pipe. The dredger is novelly designed, easy to operate. It is
widely used for river dredging, lakes and ponds desilting , land reclaimation, ports cleaning and sand pumping.

Product Paramenters:

Model	Soild capacity	Water flow	Dredging depth	Discharge distance	Main engine	Auxiliary engine	Total consumption	size(m)
6inch	40-50 m3/h	250 m3/h	6M	500M	120 KW		18L/H	103.81.6
8inch	80-100 m3/h	500 m3/h	8M	500M	176 KW	60KW	40L/H	144.51.2
10inch	150-180 m3/h	900 m3/h	10M	800M	294 KW	88KW	60L/H	1751.2
12inch	200-250 m3/h	1400 m3/h	10M	1000M	456 KW	110KW	80L/H	2061.5
14inch	300-400 m3/h	2000 m3/h	12M	1500M	735 KW	120KW	120L/H	246.61.6
16inch	400-500 m3/h	2600 m3/h	14M	1500M	882 KW	258KW	150L/H	247.21.8
18inch	500-600 m3/h	3000 m3/h	14M	1500M	1103 KW	456KW	220L/H	247.62.0
20inch	600-700 m3/h	3800 m3/h	14M	1500M	1250 KW	456KW	240L/H	267.62.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added. The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

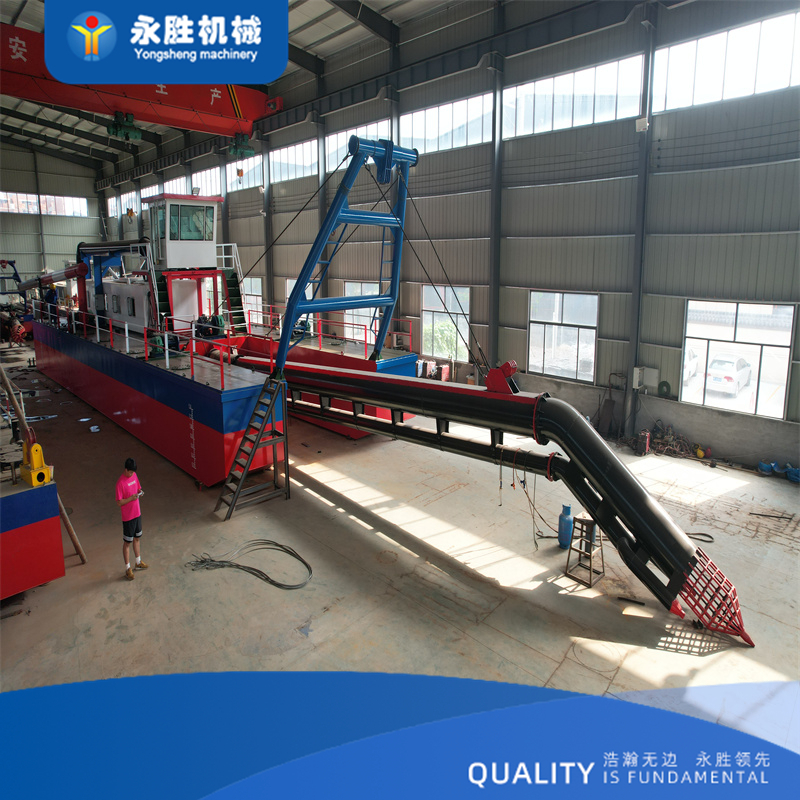

Factory Price Sand Pumping Machine jet Sand Suction Dredger 0

Factory Price Sand Pumping Machine jet Sand Suction Dredger 1

Factory Price Sand Pumping Machine jet Sand Suction Dredger 2

Applications

1. Small river and lake dredging and ecological restoration
2. Extraction and backfilling of raw sand from sand fields and mines
3. Agricultural irrigation and drainage, ditch dredging
4. Daily maintenance of wetland parks and landscape water bodies
5. Emergency sand and silt removal for municipal pipe networks
6. Coastal beach filling and early sand extraction for reclamation
7. Sand removal at the tail of hydropower stations and reservoirs
8. Sand extraction from caissons for highway/bridge pile foundation construction
9. Drainage and sand removal from temporary cofferdam foundation pits
10. Rapid cleaning of sediment in low-lying areas after disasters

Features

1. High efficient, large output and long discharge distance .
2. Very simple and fast assembly and dis-assembly, simple operation ,easy to control.
3. Good economic performance.
4. Dredge hull consists of multiple pontoons connected by proven coupling system.
5. Highly efficient fuel consumption and minimum overall operational costs.
6. Economize human resource. One man operation in low noise operating cabin.
7. Controls box and instruments are mounted in ergonomic dash board.
8. OEM/ODM are available .

shandong yongsheng dredging machinery co., ltd.

emma whatsapp:008615054842997 email:emma@dredgerys.com
