14 Inch Cutter Suction Dredger
, 350mm Cutter Suction Dredger
, High Efficiency Cutter Suction Dredger

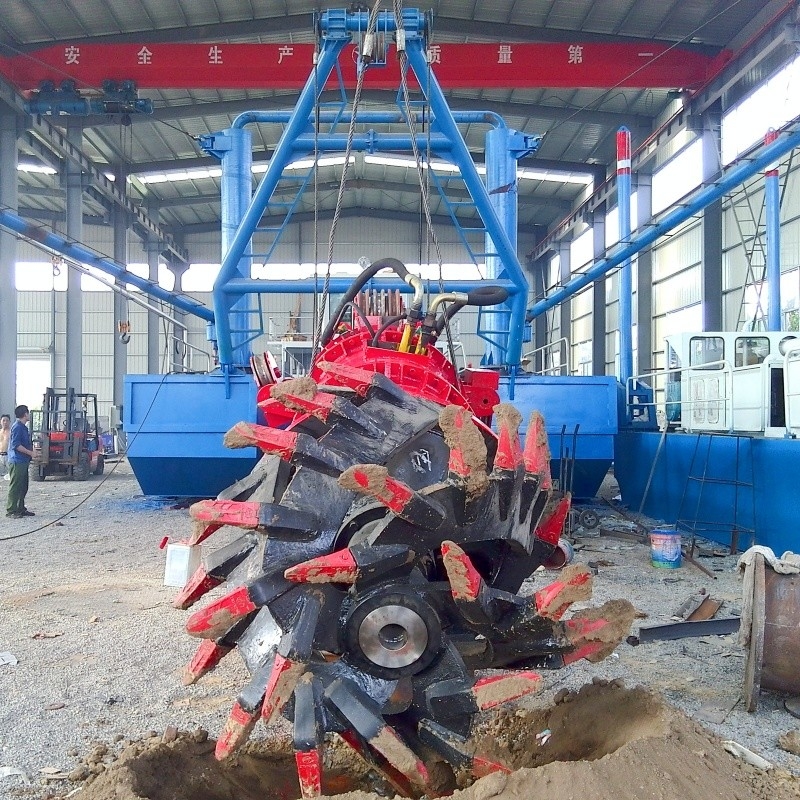

High Efficiency Cutter Suction Dredger for Saleproduct description
A Cutter Suction Dredger (CSD) is a highly efficient and versatile piece of equipment used in dredging
operations to excavate and remove sediment, soil, and other materials from underwater environments.
It is widely employed in various applications, including harbor maintenance, land reclamation, river
dredging, and the construction of canals and pipelines.
product parameters
|
Model list for hydraulic cutter suction dredger
|
|
Model
|
Inch
|
Diameter pipe
|
Water flow
|
Solid capacity
|
Total power
|
Dredging depth
|
Discharge
distance
|
|
YSCSD150
|
6 Inch
|
150 mm
|
260 m3/h
|
30 cbm/h
|
102 KW
|
4 m
|
600 m
|
|
YSCSD200
|
8 Inch
|
200 mm
|
600 m3/h
|
80 cbm/h
|
213 KW
|
6 m
|
800 m
|
|
YSCSD250
|
10 inch
|
250 mm
|
1,000 m3/h
|
160 cbm/h
|
367 KW
|
8 m
|
1,100 m
|
|
YSCSD300
|
12 inch
|
300 mm
|
1,500 m3/h
|
240 cbm/h
|
591 KW
|
10 m
|
1,100 m
|
|
YSCSD350
|
14 inch
|
350 mm
|
2,400 m3/h
|
360 cbm/h
|
971 KW
|
12 m
|
1,200 m
|
|
YSCSD400
|
16 Inch
|
400 mm
|
3,000 m3/h
|
500 cbm/h
|
1,057 KW
|
14 m
|
1,400 m
|
|
YSCSD450
|
18 Inch
|
450 mm
|
3,500 m3/h
|
700 cbm/h
|
1,462 KW
|
15 m
|
1,500 m
|
|
YSCSD500
|
20 Inch
|
500 mm
|
3,800 m3/h
|
760 cbm/h
|
1,648 KW
|
15 m
|
1,600m
|
|
YSCSD600
|
24 Inch
|
600 mm
|
6,000 m3/h
|
900 cbm/h
|
2,511 KW
|
15 m
|
1,800 m
|
|
YSCSD650
|
26 Inch
|
650 mm
|
7,000 m3/h
|
1,400 cbm/h
|
3,705 KW
|
Max.18m
|
1,800m
|
Dredger working condition
The Maximum Temperature 500C
The Minimum Temperature -100C
The Maximum Temperature of engine room 500C
The Maximum Temperature of The River (Sea) Water 300C
The Relative Humidity ≤80%
Main equipment on the dredger:
--Cutter head and driving system
-- Frame of cutter head
--Frame of ladder A
--lifting winch for sand suction pipe
--Right and left traversing winches
--Operating room
--Dredging pump
--Deck crane
--Gearbox of dredging pump
--Main diesel oil engine and auxiliary diesel oil engine
application
Land Reclamation: Cutter suction dredgers are extensively used in land reclamation projects. They
can efficiently excavate large amounts of sediments from the seabed or riverbed and transport them
to create new land areas. This is particularly important for urban expansion, the development of
industrial zones, and the construction of ports and harbors. For example, in many coastal cities,
cutter suction dredgers have been used to transform shallow coastal waters into valuable
land for various development purposes.
Waterway Maintenance: Rivers, canals, and harbors need regular maintenance to ensure sufficient
water depth for navigation. Cutter suction dredgers are ideal for removing the accumulated sediments
that reduce the depth of these waterways. They can precisely target the areas that need dredging,
ensuring that ships and boats can navigate safely and efficiently.
Environmental Remediation: In cases where water bodies are contaminated with pollutants that
have settled in the sediments, cutter suction dredgers can be used to remove the contaminated
sediments. By carefully excavating and transporting the contaminated material to a proper disposal
site, these dredgers contribute to the restoration of the water body's ecological health.
