650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging

Name: 650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd650
Price: 2250000 USD
Availability: InStock

Produktdetails

Place of Origin: china

Markenname: yongsheng

Model Number: csd650

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 1

Preis: 2250000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Erhalten Sie besten Preis

Produktdetails

Produkt-Beschreibung

Produktdetails

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Sea River Dredging Pump, 650mm Dredging Pump, Sand Mud Dredging Pump


Customized:	customized	Condition:	new
Warranty:	1 year	Water Flow:	7000m3/h
Solid Capacity:	1400cbm/h	Max.Dredging Depth 45°:	18m
Discharge Distance:	1800m	Dredger After Assembly:	50113.2m LengthWidthDepth
Dredger Structure:	Dismantle Type and Can Be Assembly in Working Site	Average Draught:	2m
Diameter Discharge Pipe:	650mm/26inch	Total Power:	3705 Kw
Main Engine:	2,685 Kw	Auxiliary Engine Power:	970 Kw
Generator:	50kw	Hydraulic Cutter Powerr:	660kw

Customized:	customized
Condition:	new
Warranty:	1 year
Water Flow:	7000m3/h
Solid Capacity:	1400cbm/h
Max.Dredging Depth 45°:	18m
Discharge Distance:	1800m
Dredger After Assembly:	50113.2m LengthWidthDepth
Dredger Structure:	Dismantle Type and Can Be Assembly in Working Site
Average Draught:	2m
Diameter Discharge Pipe:	650mm/26inch
Total Power:	3705 Kw
Main Engine:	2,685 Kw
Auxiliary Engine Power:	970 Kw
Generator:	50kw
Hydraulic Cutter Powerr:	660kw

Produkt-Beschreibung

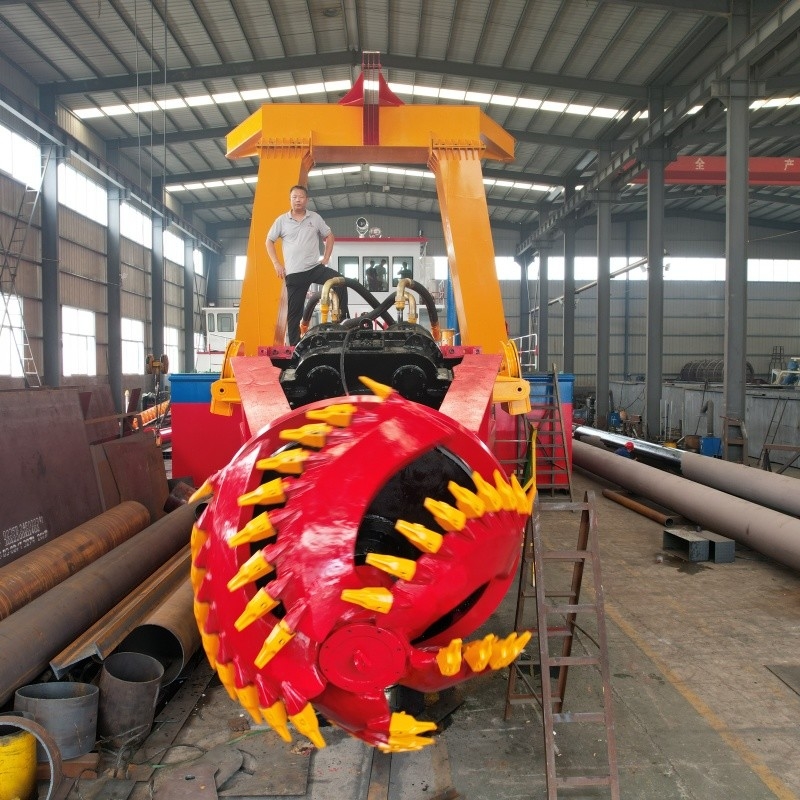

Sea River Dredging Machine Cutter Suction For Sand Mud Dredging

Product Description

The cutter suction dredger we manufacture is mainly used in the river channel, river harbor, sea harbor,

pood, lake, reservoir and other water body,
We can make the different pump capacity dredger, like 300m3/h-7000m3/h.
You can choose the proper dredging depth,like 5m-15m.
The dredger we make can discharge different distance, like 100m-3000m.
The dredger we make is in accordance with the customer requirements and the dredging environments.
So it adopts all the dredging site.

650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging 0

Product Parameters

*YSCSD650* *26 inch solid* *capacity* 1400 *cbm/h* *hydraulic cutter suction dredger*
Technical specifications
Water flow	7,000 m3/h
Solid capacity	1400cbm/h
Max. dredging depth 45°	18 m
Discharge distance	1,800 m
LOA	50 m
Dredger after assembly	50113.2m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	2 m
Diameter discharge pipe	650 mm/26 inch
Main Engine	2,685 kw
Rotate speed	1800 r/min
Auxiliary engine power	970 kw
Generator	50 kw
Hydraulic cutter power	660 kw
Total power	3705 kw

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging 1

650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging 2

650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging 3

650mm Sea River suction dredge pump Dredging Machine For Sand Mud Dredging 4

Our service :
*Our factory can offer the long time after -sale service and free spare parts for customers
*Our factory can offer the experienced installation team for installation and training the local workers
*we can according to the request of customers to choose the reasonable and practical device
*we can provide the professional and quick solution for any problem
*we have the professional technician regularly to follow up customers
*we can sign all kinds of agreement to ensure the customers right

Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
