Robust Suction Dredger Solid Capacity 500 Cbm/H Hydraulic

Name: Robust Suction Dredger Solid Capacity 500 Cbm/H Hydraulic
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD450
Price: 1200000.00 USD
Availability: InStock

Produktdetails

Place of Origin: shandong

Markenname: yongsheng

Model Number: YSCSD450

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram

Erhalten Sie besten Preis

Produktdetails

Produkt-Beschreibung

Produktdetails

Hervorheben:
                                                                                                                                                                                                                                                Robust Suction Hydraulic Dredger, Solid Capacity Hydraulic Dredger, 500 Cbm/H Hydraulic Dredger


Water flow:	3,500 m3/h	Solid capacity:	700 cbm/h
Max. dredging depth 45°:	15 m	Discharge distance:	1,500 m
Dredger after assembly:	43.57.52 m Length* width* depth	Average draught:	1.2 m

Water flow:	3,500 m3/h
Solid capacity:	700 cbm/h
Max. dredging depth 45°:	15 m
Discharge distance:	1,500 m
Dredger after assembly:	43.57.52 m Length* width* depth
Average draught:	1.2 m

Produkt-Beschreibung

solid capacity 500 cbm/h hydraulic cutter suction dredger for sale

product description

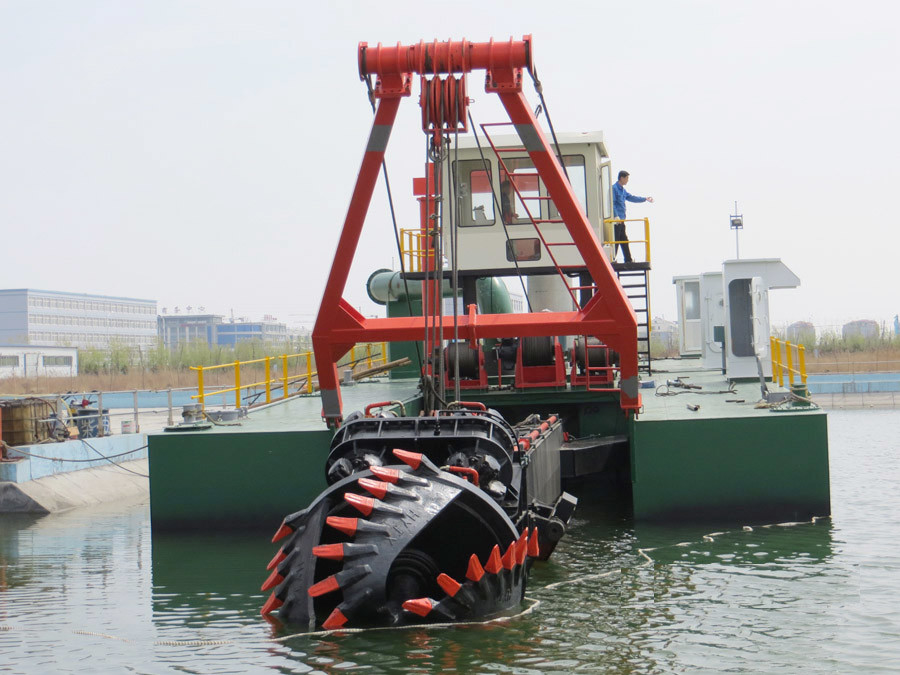

The dredger we produce is non self-propelled, portable cutter suction dredger. The hull uses dismantle

and box-like structure, which equipped with horizontal shifting devices,cutter ladder lifting devices,

spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices.

Generally,it has functions on dredging, conveying and discharging of mud and sand. It can produce

certain amount of vacuum by the centrifugal pump. The dredge pump is driven by the main diesel

engine through the reducing gear box.
The Alternator, which driven by the auxiliary diesel engine supplies electricity for power and lighting

of the whole dredger.Generator sets supplies electricity for lighting and emergency use when it doesn't

working. Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units. The

dredger is moved by alternate swing of the spuds. The spuds are lifted by the hydraulic cylinder.

parameters

*YSCSD450* solid capacity 500 cbm/h hydraulic cutter suction dredger**
Technical specifications
Water flow	3,500 m3/h
Solid capacity	700 cbm/h
Max. dredging depth 45°	15 m
Discharge distance	1,500 m
LOA	43.5 m
Dredger after assembly	43.57.52 m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	1.2 m
Diameter discharge pipe	450mm/18 inch
Main Engine	1,007 kw Cummins engine
Rotate speed	1800 r/min
Auxiliary engine power	425 kw Cummins engine
Generator	30 kw
Hydraulic cutter power	160 kw
Total power	1,057 kw

Robust Suction Dredger Solid Capacity 500 Cbm/H Hydraulic 0

Robust Suction Dredger Solid Capacity 500 Cbm/H Hydraulic 1

Robust Suction Dredger Solid Capacity 500 Cbm/H Hydraulic 2

Features
Efficient operation - powerful reamer + large flow mud pump, easily cope with all kinds of soil!
Intelligent control - automated system, precise dredging, reduced manual intervention!
Durable design - highly wear-resistant materials, ultra-long service life, low maintenance cost!
Flexible customization - multiple models available to meet different water depths and engineering

requirements!
