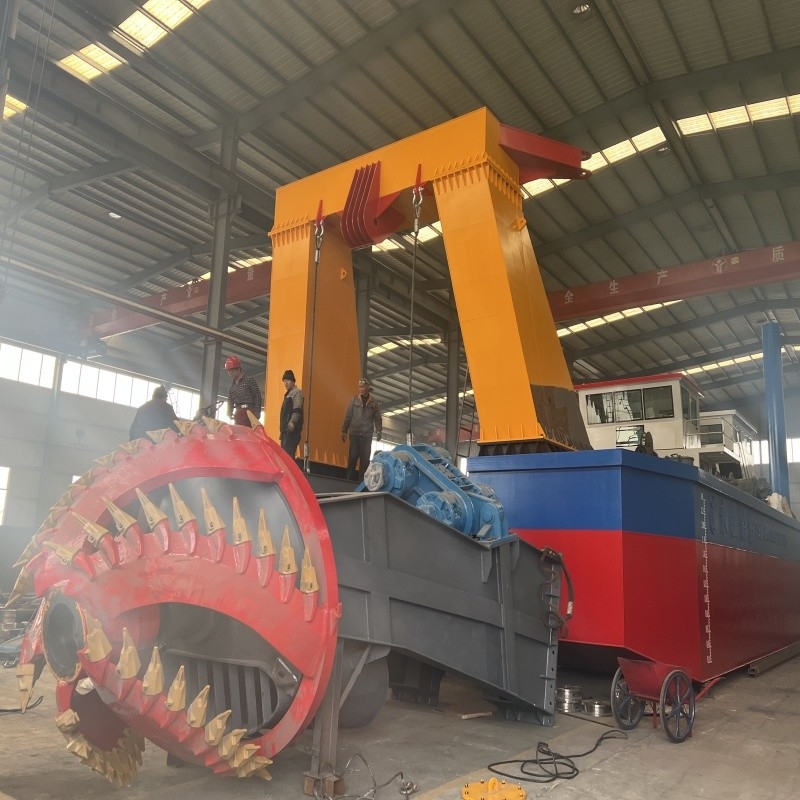

Cutter Suction Dredger Ship
, Dredging Cutter Suction Dredger
, Split Structure Cutter Suction Dredger
Good Quality Cutter Suction Dredger for Dredging for Saledescription
Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses the
front end of the suction pipe. The cutter suction pipe is equipped with a rotating cutter device to cut
and agitate the river bottom sediment, and then through the suction pipe, the Mud, mud transport,
mud unloading, and other work processes can be completed continuously at one time. It is a high
-efficiency, low-cost dredger and a good underwater excavating machine. The split structure makes
the installation and transportation of the cutter suction boat simpler and more flexible, can be easily
ransported to any location.With its robust design, it is the preferred choice in its class due to low
maintenance,excellent fuel consumption, and high productivity levels.
parameters
|
CSD500 solid capacity 900 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
4,800 m3/h
|
|
Solid capacity
|
900 cbm/h
|
|
Max. dredging depth 45°
|
15 m
|
|
Discharge distance
|
1,600 m
|
|
LOA
|
47 m
|
|
Dredger after assembly
|
47*8.8*2 .5m Length* width* depth
|
|
Dredger structure
|
Dismantle type and can be assembly in working site
|
|
Average draught
|
1.6 m
|
|
Diameter discharge pipe
|
500mm/20 inch
|
|
Main Engine
|
1,193 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
425 kw Cummins engine
|
|
Generator
|
30 kw
|
|
Hydraulic cutter power
|
220 kw
|
|
Total power
|
1,648 kw
|
Features
* Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge
distance
* Optimal configuration of power and hydraulic unit (less operating costs)
* Dismountable structure, easy to disassemble, and transportation.
* Double powerful auger drive (infinitely for- and backward)
* High working range of the outrigger arm
* Equipped with a self-propulsion system that can be moved to a different work site or
dragged by tugboat
* Cutter suction head can be changed for different situations
* Easy access to all parts, especially the dredge pump-wearing parts.
* Freshwater cooling system.
* Safe and easy to operate
* Can be designed and fabricated according to your requirements
