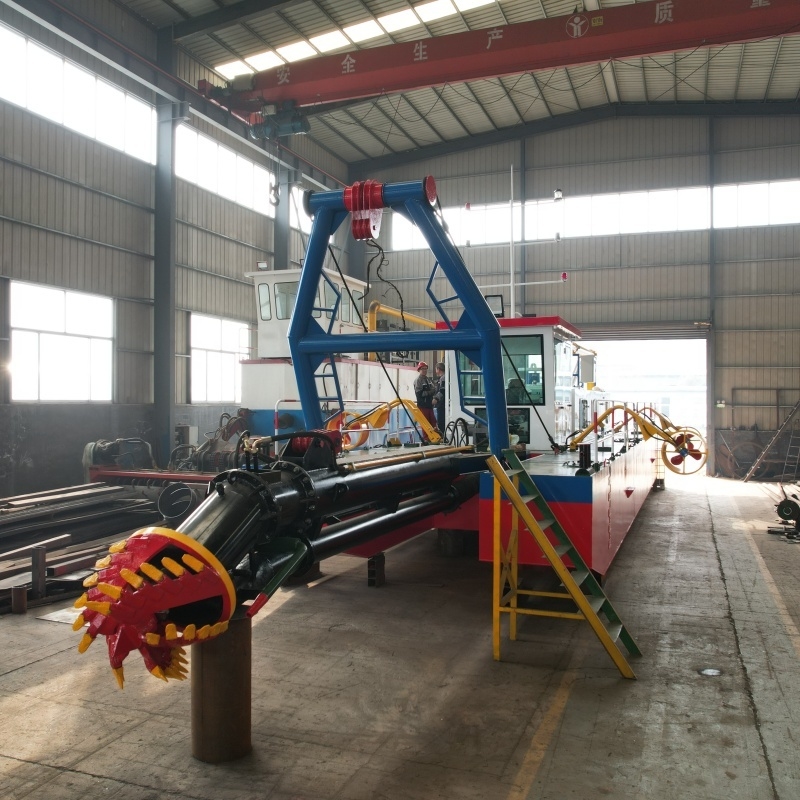

Cutter suction dredger with a pumping depth of 15 meters can be customized

Cutter suction dredger with a pumping depth of 15 meters can be customized

product description

A cutter suction dredger is a large, efficient, and continuously operating engineering vessel that integrates excavation,

transportation, and discharge. It is one of the most commonly used and important ship types in modern dredging

projects. It is particularly suitable for channel dredging, port construction and maintenance, land reclamation, water

conservancy projects, environmental dredging, and other fields.

Core working principle:

The core working principle of a cutter suction dredger can be summarized as "loosening, suction, pumping, and

discharge" in four steps:

Loosening (cutting): A powerful cutter head is installed at the lower part of the bow. This cutter head is usually

driven by a motor or hydraulic drive to rotate at high speed, and the teeth (or blades) cut, loosen, and crush the

mud, clay, gravel, and even soft rock on the bottom of the water.

Suction: A large suction pipe inlet is installed near the cutter head. The loosened mud-water mixture (called mud)

is sucked into the suction pipe under the strong negative pressure (suction) generated by the mud pump (usually

located in the hull).

Pumping: The sucked mud is transported to the mud pump on the ship through the suction pipe. After the mud

pump is pressurized, the mud is transported to the predetermined discharge location through the mud discharge

pipeline (which can be a floating pipe floating on the water surface or a submerged pipe buried in the water).

Discharge: The mud is finally discharged to the designated area

product parameters

Advantages:

Continuous and efficient operation: Excavation, suction, transportation and discharge are carried out continuously

without intermediate transfer links, and the production efficiency is extremely high.

Strong excavation capacity: It can adapt to a wide range of soil types from silt to weathered rock (the specific capacity

depends on the type of auger and the power of the ship).

High excavation accuracy: Through precise positioning and control systems (such as DTPS - dredging trajectory

positioning system), high-precision cross-section excavation can be achieved, and the flatness of the channel and

foundation trench can be well controlled.

Long transportation distance: Through relay pump stations, mud can be transported to the discharge area more than

 ten or even dozens of kilometers away.

Environmental protection (relative): Small disturbance (compared to grab buckets and chain buckets), the excavation

range can be accurately controlled, and the mud can be transported in a closed manner to reduce secondary pollution to

 the water environment. It is particularly suitable for environmentally friendly dredging.

High integration: A single ship completes the entire dredging process.

company profile

Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong

Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing

experience in water area environmental protective equipment. It is a professional supplier of integrated with

R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
